Cooling, air-conditioning, water distribution/
boosting, industrial process
Product Description

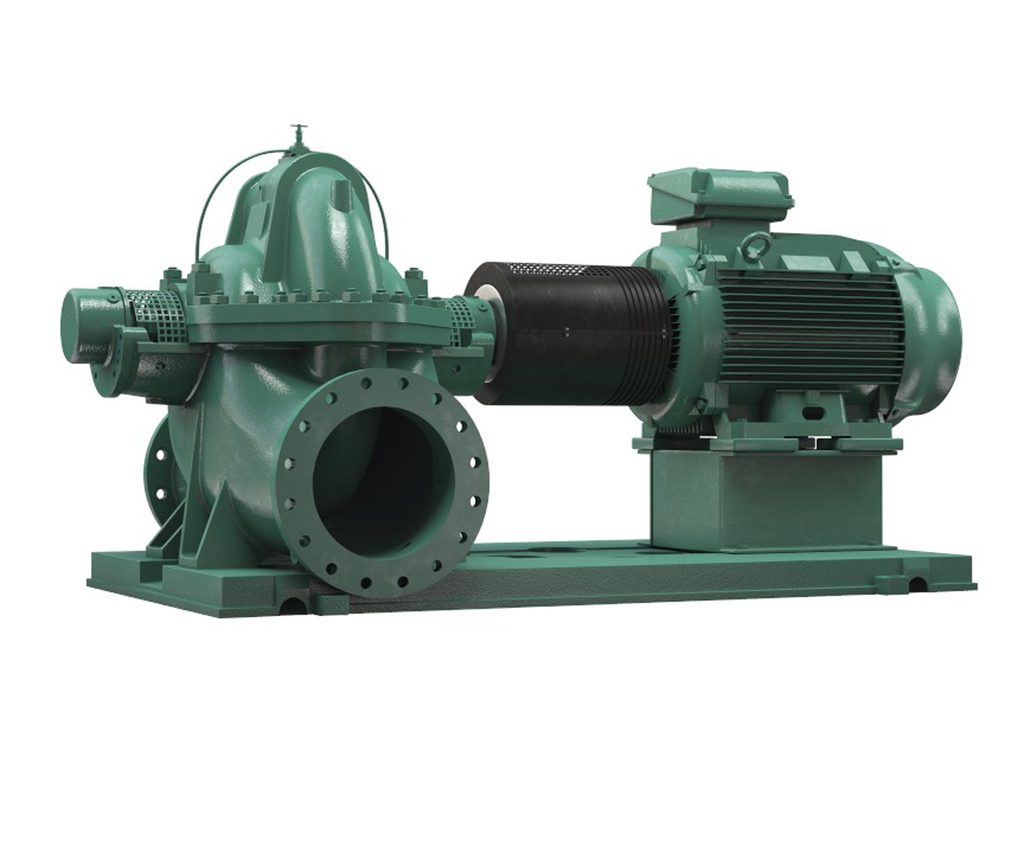

Low-pressure centrifugal pump with
axially split housing mounted on a
baseplate
Pumping heating water in accordance
with VDI 2035, water-glycol
mixtures, cooling/cold water and
process water
Applications in municipal water
supply, irrigation, building services,
general industry, power stations, etc.

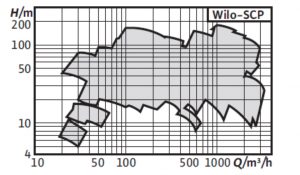

Volume flow Q max. 3,400 m3/h
Delivery head H max. 245 m
Fluid temperature -8 °C to +120 °C
Mains connection 3~400 V, 50 Hz
Protection class IP 55
Nominal diameters – Suction side:
DN 65 to DN 500
Pressure side: DN 50 to DN 400
Max. operating pressure:
16 or 25 bar, depending on type
1- or 2-stage, low-pressure centrifugal
pump in monobloc design
Deliverable as complete unit or without
motor or only pump hydraulics
Shaft sealing with mechanical seal or
stuffing box packing
4-pole and 6-pole motors
Materials:
Pump housing: EN-GJL-250
Impeller: G-CuSn5 ZnPb
Shaft: X12Cr13
Higher capacities up to 17,000 m3/h
on request
Special motors and other materials
on request
